What is Lathe Chuck?

Types of Lathe Chuck :- A lathe chuck is basically a part of lathe machine which is set up on the headstock of a lathe. The lathe chuck operates either manually or using power supply. The main use of lathe chuck is to hold the material block which is operated upon. It holds the piece to be machines, when it is rotating. It can hold both symmetrical as well as asymmetrically shaped objects (especially the ones lacking radial symmetry).Apart from lathe machines the chucks are also used in places such as milling machine.

What is Lathe Machine?

A Lathe machine can be basically defined as a device that rotates the blocks of a given material in order to make a job. Operations such as grinding and cutting are implemented to the material. Normally lathes are used to shape objects with rotational uniformity. The lathe operates on materials generally made up of-

  1. Wood
  2.  Metal like aluminum, steel, titanium
  3. Plastics, wax, Delrin’s etc.

(It is to be taken care that any material block which is used should be within the size boundaries of the lathe (generally 8” dia and 42” length)

Types of Lathe Chuck

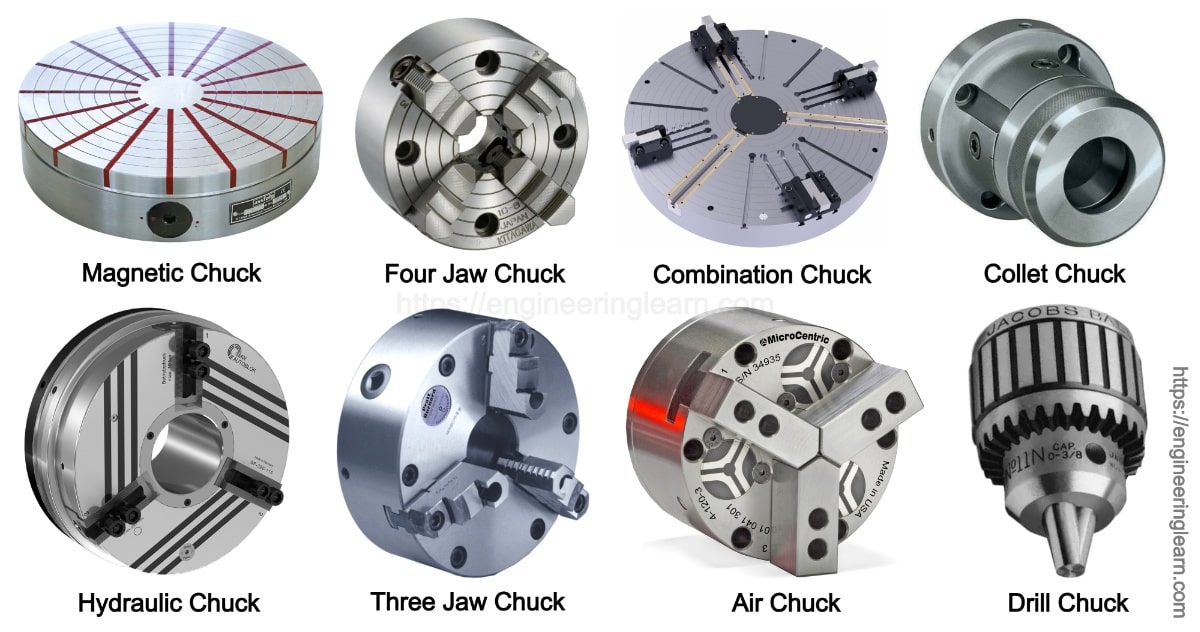

Broadly speaking there are basically seven types of lathe chuck used in lathe machines, namely-

1) Magnetic Chucks
2) Four Jaw Independent Chuck
3) Combination Chuck
4) Three Jaw Universal Chuck
5) Collet Chuck
6) Drill Chuck
7) Air Chuck or Hydraulic Chuck

1. Magnetic Chucks: (Types of Lathe Chuck)

The magnetic chuck is used for gripping very lean pieces. These lean pieces are made up of magnetic material which cannot be gripped in an ordinarily chuck. Many a times there is a chance of bending, buckling, twisting or any kind of deformation of the work piece due to pressure of the jaws of ordinary chucks. At such instances, Magnetic lathes are used.

The chuck has either electromagnets or permanent magnets installed in it. It is from these magnets, that the chuck obtains the radiating magnetic flux. This magnetism aids the chuck to hold the work piece.

How the magnetic chuck works-

When the lathe is turned on, the magnetic flux passes through the work piece and holds it. When the lathe is turned off the magnets are removed. The magnets are then brought in contact with high permeable items known as keepers. These keepers short-circuit the flux, thereby preventing the flux from passing through the work piece.

2. Four Jaw Independent Chuck:

In the four-jaw independent chuck, each of the stepped jaw is separately operated by a different screw. With the help of this characteristic allows the four- jaw independent chuck to fasten any shape. Shapes such as round, rectangular, square, irregular etc can be fastened by this type of chuck using between tow and all four of the available jaws.

Excess features slow down the operation process and also takes a lot of practice to operate on it. This chuck also requires the help of an indicator gauge. The jaws of this chuck are also changeable. The can be used for clamping inside or outside according to the task. As an advantage, the four-jaw independent chuck is the most reasonably priced type of lathe chuck

3. Combination Chuck: (Types of Lathe Chuck)

A combination of chuck is used both as a

  • Self-centering chuck
  • Independent chuck

This specific feature of this chuck helps to make benefits of both the types of chucks. The jaws are operated independently by separate screws. They are also operated by the scroll disc. The frame consists of teeth cut on its bottom which interlocked with the scroll. These jaws along with the screws move radially. This movement takes place when the scroll is rotated by a pinion.

4. Three Jaw Universal Chuck: (Types of Lathe Chuck)

The three jaw lathe chuck is the most widely used chuck. The jaws of this chuck are at an angle of 120 degrees from each other. These jaws are made up of high- quality steel.

When the chuck is operated the jaw teeth are made to connect with the bevel teeth. This interlocking causes a moment of all three jaws either towards or away from the chuck centre. This moment depends upon the direction of rotation of the bevel pinion. The chuck key, which is a square end key, operates the pinion.

The three jaw lathe chuck is generally employed for gripping shapes such as round and hexagonal shaped work pieces. The three-jaw chuck has this unique feature that the job is centralized automatically in very less time. This chuck suffers from a disadvantage that the holding capacity becomes less as only three jaws are used and centering precision is soon lost due to wear.

5. Collet Chuck: (Types of Lathe Chuck)

Collet chucks are generally employed for griping bar stock in factories or industries, where the work is required to be quickly set and accurately centered.
